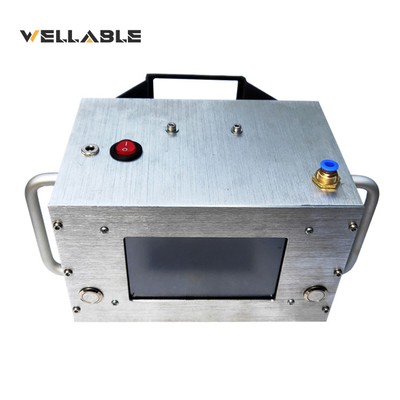

Wellable Metal Plane One Stop Service Integrated Dot Peen Marking Machine With High Quality

1 Unit
MOQ
$1,180.00(1 - 4 Units) $980.00(>=5 Units)
prezzo
Wellable Metal Plane One Stop Service Integrated Dot Peen Marking Machine With High Quality
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Machine Type: metal marking machine
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Engine, Motor
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh,
Rated Power: 300w
Engraving Speed: 1-3charater/s
Application: metal plane
Weight (KG): 10
Product name: Portable Pneumatic Metal Dot Peen machine
Keyword: dot peen
Type: Pneumatic Printer
Use for: Cutting Engraving Metal Materials
Marking Area: 140*80mm
Color: as picture
Operation method: handheld
Controller weight: 4KG
Machine weight: 10KG
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Corrugated box
Supply Ability: 500 Unit/Units per Month
Descrizione di prodotto
Product Description
Marking speed
2-5 characters(2x2mm)/s
Stroke Frequency
300times/s
Marking depth
0.01 to 1mm (Vary to the material)
Marking contents
Alphanumeric info, Data Matrix or dot matrix 2D codes,
Shift codes, Barcode, Serial Number, Date, VIN Code, Time,
Letter, Figure, Logo, Graphics and etc.
Stylus Pin Hardness
HRA92/HRA93
Marking area
80x40mm,130x30mm,140x80mm,200x200mm
Dimensions
45x45x55cm
Marking materials
below HRC60 metallic and nonmetallic materials ,
above HRC60 need special stylus
Repeat accuracy
0.02-0.04mm
Power
300W
Work voltage
AC 110V 60HZ or AC220V 50HZ
Compressed Air( Pneumatic Air)
0.2-0.6Mpa
Connection
USB and RS-232
Controller
a. 7"LCD touch screen controller
b. windows 7&windows XP
Power type
a.Pneumatic
b.Electric
Marking directions
up, down, left, right, and the circular arc surface marking
Gross weight
12KG
Company Profile
FAQ
Q: How to select the suitable machines?
A: Tell us your material, detail requirements by words, pictures or videos. We will recommend you the suitable model with the reasonable price.

Q: What’s the MOQ?
A: Normally, MOQ is 1 piece. The quantity is depending on the client
If there is no stock, the general MOQ is in big difference due to the different products. But the quantity still can be
negotiated.

Q: What is your principle for the samples?
A: We can offer free marking samples according to clients’requirement.

Q: What payment methods can be acceptable?
A: We could accept the payment by T/T, Paypal, Western Union, L/C, etc.

Q: How about the lead time?
A: For the standard machine, the delivery time is 3-7 working days after the payment.
For the customized machine, the delivery time is 7-15 working days after the payment.

Q: What certificated will be offered?
A: CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products.
Also, protective packaging is offered to avoid destroy during delivery.

Q: What service do you provide after sales?
A: We could provide Online instructions: Real-time support by video-call or voice-chat.
During the warranty time, we can send spare parts for free if any quality problems cause the products’ inactive. Technical
guidance is free and ready forever. (pls download After-sales Service file for more details)

Q: Can you give a training?
A: Your technicians can come to our factory for a training, only if you cover the expense for business trip.
There is e-manual and real-time support by video offered to our customers when you need anytime.

Q: Can you do OEM?
A: OEM service is available. Products can be customized according to your requirements.
