Caratteristiche

Specificazioni

Application: Laser Marking, stainless steel, brass, silver, gold, al, and some nonmtals

Working Accuracy: 0.001mm

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg

Laser Type: Fiber Laser

Condition: New

CNC or Not: Yes

Cooling Mode: Air cooling

Control Software: Beijing EZCAD

Laser Source Brand: Raycus

Control System Brand: Beijing EZCAD

Marking Head Brand: Beijing Sheng's Galvanometer scanner

Weight (KG): 130 KG

Key Selling Points: Multifunctional

Warranty: 2 years

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Marking Area: 110mm*110mm

Machinery Test Report: Not Available

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Raycus fiber laser source

Product name: Fiber laser marking /engraving machine

Laser source: Raycus (JPT, MAX, IPG optional)

Laser Power: 50W (30W / 30W optional)

Laser wavelength: 1064nm

Control Card: Original Beijing JCZ mainboard with EZCAD software

Windows System: Win XP / 7 / 8 / 10 (32 bit , 64 bit)

Power Supply: AC220V +10% / 50HZ

JPT laser source lifespan: More than 20,000 hours

Raycus laser source warranty: 2 years

Showroom Location: None

Marketing Type: Hot Product 2021

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: 1). Water-proof plastic film package with foam protection in each corner; 2). Solid Seaworthy Wood Box Package with Steel Belt; 3). Save space as much as possible for container loading.

Descrizione di prodotto

Product Overview

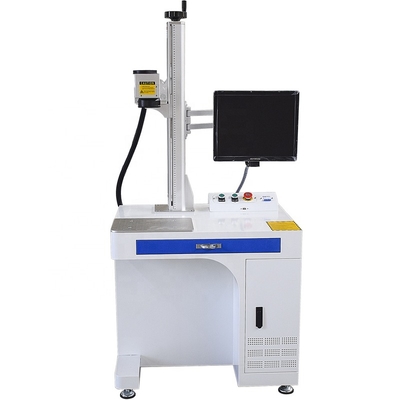

50W Portable Raycus Fiber Laser Marking Machine and Laser Engraving Machine for Metal Marking

1. Fast marking speed (up to 7000mm/s) and high efficiency of process.
2. Software EZCAD system is easy to operate, and compatible with PHOTOSHOP, CORELDRAW, AUTOCAD.
3. It supports graphic file such as PLT, DXF, BMP, PCX and so on.
4. It also could mark directly for bar code, serial number, lot number, date, qr code and so on.
5. Runs without consumable spare parts, no need maintenance, great for continuous working.
6. The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
7. High resolution ratio: resolution ratio is 10 times than the traditional marking machine.
8. Low consumption: is one ten than the traditional marking machine.
9. High speed: is 3-5 times than traditional marking machine.

10. Life of the laser can be up to 100,000 hours, and warranty is 3 years.

FEATURES AT A GLANCE

# Desktop model
# Raycus/ Max / JPT fiber laser source 50W

# Sino-Galvo Galvanometer scanner
# CARMEN HAAS Field lens
# Marking field : 110*110mm
# Beijng JCZ controlling system
# Aluminum alloy flat working table
# Red pointor for laser beam
# Manual lifting column 800mm

Right side

Left side

Back side

PRODUCT SPECIFICATIONS

No	Product name	Desktop fiber laser marking machine
1	Laser source and power	Raycus / JPT/ MAX fiber laser source 50W
2	Wavelength	1064nm
3	Beam Quality	M² ≤ 1.2
4	Frequency	20KHz-80KHz
5	Galvanometer scanner	Sino-Galvo
6	Field lens	CARMEN HAAS
7	Controlling system	Beijing JCZ controlling mainbaord and EZcad software on computer
8	Marking size	110 110mm (150150, 175175 mm, 250250mm, 300*300mm for optional)
9	Repetitive accuracy	0.005mm
10	Min linear width	0.01mm
11	Max marking /engraaving speed	7000mm/s
12	Cooling device	S&A water chiller CW5000
13	Consumed power	<600W
14	Power	220V ± 10%, 1PH, 50HZ

PRODUCT CONFIGURATION

Raycus laser source 50W

Sino-Galvo Galvanometer scanner

CARMEN HAAS Field lens

Controlling cabinet with Beijing JCZ

Manual lifting column 800mm

Lifting handle

Controlling cabinet with Beijing JCZ

Aluminum alloy flat working table

Parts with delivery

Successful Project

Application:

Materials:
Metals: Gold, silver, copper, brass, alloy, aluminum, steel, stainless steel,carben steel, mild steel and etc.
Non-metals: Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile
communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles and etc.
Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock,Cooker, Stainless steel products, aluminum name card and etc.

SIMILAR PRODUCTS

Desktop fiber laser

Desktop Mopa fiber laser

Desktop co2 laser

Portable split fiber laser

(stainless steel cover)

Portable split co2 laser

Portable fiber laser

Portable + handhelder fiber laser

Desktop integrated fiber laser

Semi-enclosed fiber laser

Enclosed fiber laser

FAQ

Q1. How to get the most suitable machine and best price？
Please tell us what you want to mark? Maximum size and desired power?

Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.

Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
